Content
| Mass Parameters | Total Weight (kg) | 25000 | |
| Volume (Meter Cubic) | 12 | ||
| Size Parameters | Overall Dimensions (mm) | Length | 9480 |
| Width | 2496 | ||
| Height | 3850 | ||
| Distance between Axles (mm) | 4000+1400 | ||
| Performance Parameters | Max. Driving Speed (km/h) | 78 | |
| Economic Speed (km/h) | 60 | ||
| Recommended Configuration | Engine | WD615.47 | |
| Gearbox | HW19710 | ||
| Rear Axle | HC16 | ||
| Oil Tank (L) | 300 | ||
| Suspension (front/rear spring) | 10/12 | ||
| Tire | 12.00R20 | ||

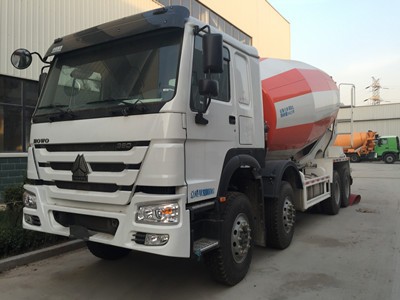

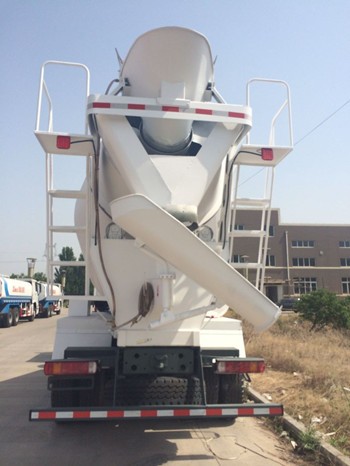

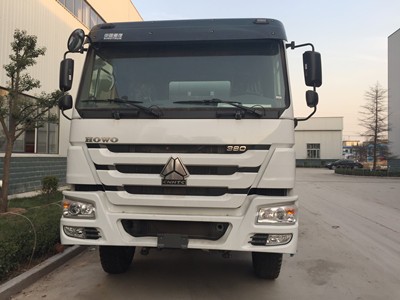

,howo concrete mixer truck,howo 6x4 concrete mixer truck,sinotruk howo concrete mixer,foton concrete mixer truck
we offer all howo parts as reference as below:
| 1 | AZ9719580020 | 1 | Meter platform assembly drawing | |
| 2 | WG9719582001 | 1 | lighting switch | |
| 3 | WG9719582002 | 1 | Front fog light | |
| 4 | WG9719582003 | 1 | Rear fog light switch | |
| 5 | WG9719582004 | 1 | Danger switch | |
| 6 | WG9719582005 | 1 | Horn switch | |
| 7 | WG9719582007 | 1 | Working light switch | |
| 8 | WG9719582010 | 1 | Power take-off switch | |
| 9 | WG9719582011 | 1 | Wheel-difference switch | |
| 10 | WG9719582012 | 1 | Axis-difference switch | |
| 11 | WG9725580005 | 1 | Diagnosis shell | |
| 12 | WG9719582054 | 1 | MCS switch | |
| 13 | WG9900580021 | 6 | Cover board | |
| 14 | WG9725586002 | 1 | Combination switch | |
| 15 | Q2540512 | 3 | Screw | |
| 16 | Q40105 | 3 | Washer | |
| 17 | Q40305 | 3 | Spring washer | |
| 18 | AZ9725580030 | 1 | Rubber cover | |
| 19 | WG9100580142 | 1 | Cigar lighter(24V) | |
| 20 | WG9725584026 | 1 | Wiring harness fixation nip | |
| 21 | WG9725584029 | 1 | ECU installation box | |
| 22 | Q150B0825 | 5 | Nut | |
| 23 | Q40108 | 5 | Washer | |
| 24 | Q40308 | 5 | Spring washer | |
| 25 | Q340B08 | 5 | Nut | |
| 26 | WG9716580021 | 1 | Electrical connection box assembly | |
| 27 | Q2140635 | 4 | Screw | |
| 28 | Q40106 | 4 | Washer | |
| 29 | WG9725584001 | 3 | Conversion relay(40A) | |
| 30 | WG9725584002 | 10 | Conversion relay(20A) |
